We’re excited to announce the launch of a new addition to our cable protection lineup: the Heyco® Cordgrip with Integral Sealing Ring. Engineered for reliability in harsh environments, this innovative cordgrip offers an advanced sealing solution to meet your toughest application demands.
A Smarter Seal – Built In

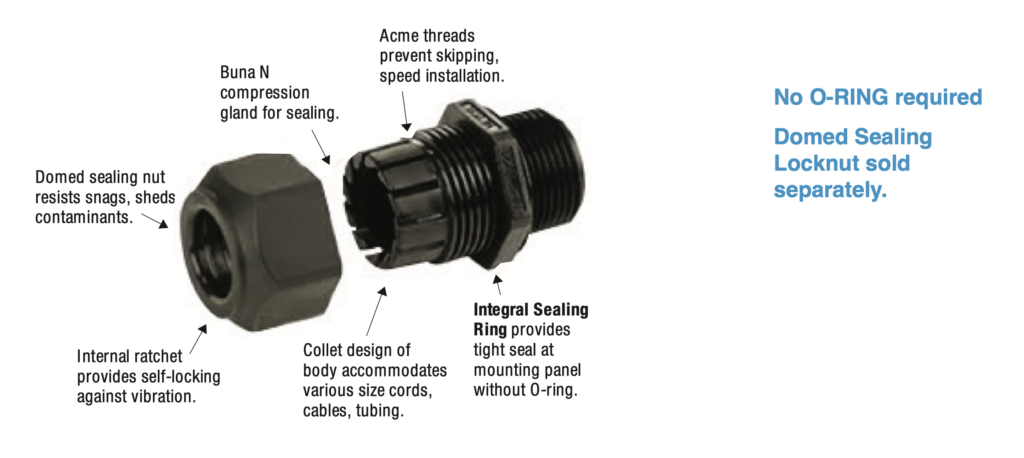

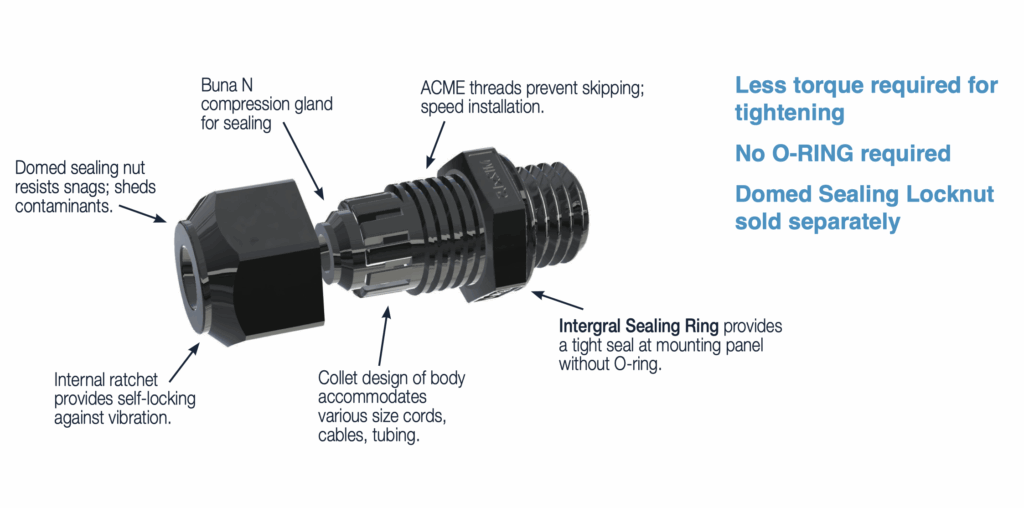

What sets this new cordgrip apart? The integral sealing ring. Unlike traditional options, this built-in feature ensures a consistent and secure seal at the clearance or threaded mounting hole every time—enhancing protection and reducing assembly errors.
Features & Benefits
- IP68 Rated: Offers complete protection against dust and extended water immersion.
- NEMA Approved: Suitable for NEMA 4, 4X, 6, and 6P applications, making it ideal for both indoor and outdoor environments.
- Superior Seal: The integral sealing ring provides consistent sealing performance—every time.
- Wide Cable Range: Accommodates flexible cord diameters from 0.065” (1.7 mm) to 1.730” (44.0 mm), offering a broad sealing range.
- Anti-Vibration Design: Ratchet-style sealing nut ensures a firm grip and minimizes the risk of loosening due to vibration.
- Quick Installation: Acme threads on the body prevent skipping and make for fast, hassle-free assembly.
- Chemical Resistance: Constructed from Nylon 6/6 with Buna N or TPE sealing glands, these fittings resist salt water, oils, weak acids, alcohol, and common solvents.
Specifications
| Cable Dia. Range | Part No. | Description | Part Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Black | Gray | A | B | C | D | E | ||||||||

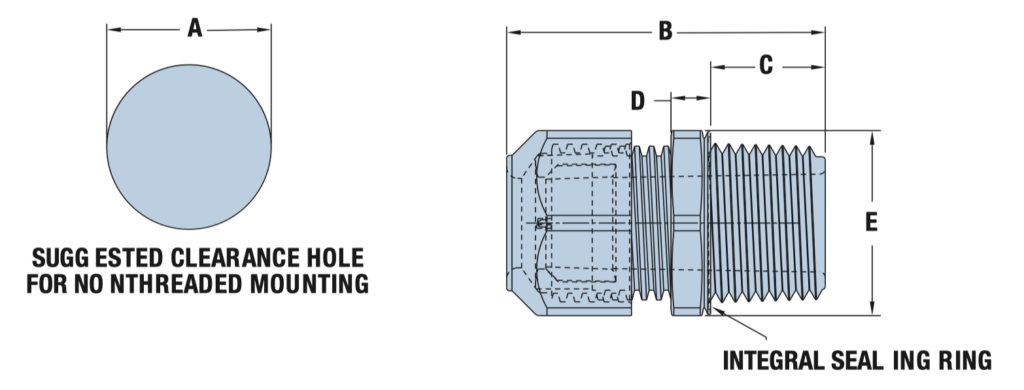

| Clearance Hole Dia. | Max. O.A. Length | Thread Length | Wrenching Nut Thk. |
Wrenching Nut Flat Size |
||||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||
| .065 .115 |
1,7 2,9 |
.210 .250 |
5,3 6,4 |
M4514 M4516 |
M4515 M4517 |
RLTCG 1/4 LTCG 1/4 |
.540 | 13,7 | 1.29 | 32,8 | .45 | 11,4 | .21 | 5,3 | .63 | 16,0 |
| .065 .105 |
1,7 2,7 |
.230 .315 |
5,8 8,0 |
M3458 M3228 |
M3459 M3229 |
RLTCG 3/8 LTCG 3/8 |
.680 | 17,3 | 1.41 | 35,8 | .49 | 12,4 | .21 | 5,3 | .82 | 20,8 |
| .095 .170 |
2,4 4,3 |
.290 .450 |
7,4 11,4 |
M4518 M3231 |
M4519 M3232 |
RLTCG 1/2 LTCG 1/2 |
.875 | 22,2 | 1.70 | 43,2 | .61 | 15,5 | .21 | 5,3 | .98 | 24.9 |
| .180 .270 |
4,6 6,9 |
.400 .545 |
10,2 13,8 |
M4520 M3200 |
M4521 M3201 |
RLTCG LL 1/2 LTCG LL 1/2 |
.875 | 22,2 | 1.68 | 42,7 | .44 | 11,2 | .25 | 6,4 | 1.06 | 26,9 |
| .250 | 6,4 | .490 | 12,4 | M3460 | M3461 | RLTCG 3/4 | 1.109 | 28,2 | 2.00 | 50,8 | .62 | 15,7 | .25 | 6,4 | 1.30 | 33,0 |
| .420 .435 |
10,7 11,0 |
.630 .705 |
16,0 17,9 |
M3234GA M3234 |
M3235GA M3235 |
LTCG 3/4 | ||||||||||
| .490 .590 |
12,4 15,0 |
.785 1.000 |
19,9 25,4 |
M8439 M8437 |
M8440 M8438 |
RLTCG 1 LTCG 1 |
1.326 | 33,7 | 2.41 | 61,2 | .76 | 19,3 | .30 | 7,6 | 1.73 | 43,9 |
| .787 .875 |
20,0 22,2 |
1.020 1.260 |
25,9 32,0 |
M4522 M4524 |
M4523 M4525 |
RLTCG 1-1/4 LTCG 1-1/4 |
1.680 | 42,7 | 2.69 | 68,3 | .78 | 19,8 | .30 | 7,6 | 2.05 | 52,1 |
| 1.000 1.230 |
25,4 31,2 |
1.240 1.560 |
31,5 39,6 |
M3319 M3317 |
M3320 M3318 |
RLTCG 1-1/2 LTCG 1-1/2 |
1.920 | 48,8 | 2.81 | 71,3 | .77 | 19,6 | .36 | 9,1 | 2.46 | 62,5 |
| 1.160 1.450 |
29,5 36,8 |
1.350 1.730 |
34,3 43,9 |
M3323 M3321 |
M3324 M3322 |
RLTCG 2 LTCG 2 |
2.400 | 60,8 | 2.93 | 74,3 | .79 | 20,1 | .42 | 10,7 | 2.73 | 69,3 |
Standard colors black and gray.
Quick Specs:
- Material: Natural Nylon 6/6 w/Buna N or Certifications TPE Sealing Gland
- Certifications:
- Listed under Underwriters’ Laboratories File E51579
- Recognized under the component Program of Underwriters’ Laboratories File E51579
- Certified by Canadian Standard Association File 93876C
- Approved for NEMA 4, 4X, 6 and 6P Applications
- Flammability Rating: 94V-2 – Consult factory for VO material
- Temperature Range:
- Static: -40°F (-40°C) to 185°F (85°C)
- Dynamic: -40°F (-40°C) to 248°F (120°C)
- IP Rating: IP 68 (70 PSI, 5 BAR)
Applications
From marine and industrial automation to outdoor lighting and food processing, these cordgrips deliver superior protection where it’s needed most.
Download Heyco® Cordgrips Featuring Integral Sealing Rings technical sheet.
Looking to source Heyco® Cordgrips?
Contact us or speak with one of our product experts to ensure you’re choosing the right fit for your application.
