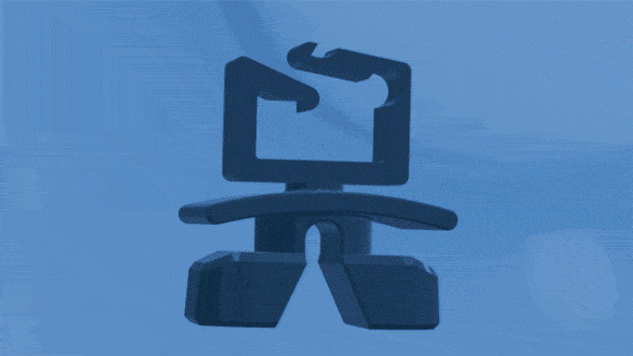

If you’ve ever struggled with keeping wires neat, secure, and easy to adjust, you’re not alone. In automation, robotics, and industrial setups, cables have a way of getting messy fast. That’s where the Heyco® Quarter-Turn Mount Wire Clips (CHQTM-5) come in — a small solution that makes a big difference in wire management.
Why You’ll Love Them
These clips were designed with convenience in mind:

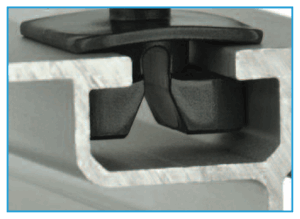

- Fast install, fast removal – Just push in and give a quick 90° twist. The clip locks firmly in place with high pull-out retention, but when you need to move it, simply twist it back out.
- Works with most rail systems – They’re built for the standard Powermation rail and racking systems, but they’ll also fit any ½” T-Slot racking or rail system from other manufacturers.
- Smart cable control – Whether you’re routing a single wire or a bundle, the latch gate locks cables securely but can be reopened if you need to repair, replace, or add wires later.
- Compact design – A narrow footprint and top-entry style make these clips easy to install in tight spaces without getting in the way.
- Material choices for your needs – Different nylon options cover everything from standard use to high-heat or higher flammability requirements.
Where They’re Used
The CHQTM-5 clips are versatile and right at home in:
- Industrial automation systems – Keep control wiring neat inside panels and racks.
- Robotics workstations – Route cables cleanly along moving parts without tangles.
- Manufacturing lines – Manage sensor and actuator wiring along rail systems.
- Test labs and equipment setups – Bundle cables where frequent changes are needed.
- General cable management – Any project that uses ½” T-slot framing can benefit.
In short: if you’re building, maintaining, or upgrading anything with rails, racks, or automation equipment, these clips make life easier.
Material Options
Nylon 6/6 Natural – Great for everyday use (32°F (0°C) to 185°F (85°C), UL 94 V-2).- Black Heat Stable / UV Stable Nylon – Handles harsher environments (-40°F (-40°C) to 239°F (115°C), UL 94 V-2).
- Black Nylon 6/6 – Flame-retardant for added safety (-40°F (-40°C) to 185°F (85°C), UL 94 V-0).

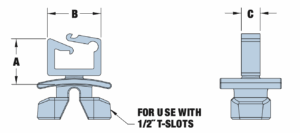

Sizes and Dimensions
| WIRE CAPACITY | PART NO. | DESCRIPTION | PART DIMENSION | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm. | Nylon 6/6 Natural | HS Nylon 6/6 Black | VO Nylon 6/6 Black | A – Height | B – Width | C – Depth | ||||
| in. | mm. | in. | mm. | in. | mm. | ||||||
| .44 x .14 | 11.1 x 3.6 | 4421 | 4421B | 4421F | CHQTM-5 L-12 | 0.50 | 12.7 | 0.61 | 15.5 | 0.22 | 5.6 |
| .44 x .33 | 11.1 x 8.4 | 4426 | 4426B | 4426F | CHQTM-5 L-18 | 0.74 | 18.8 | 0.61 | 15.5 | 0.22 | 5.6 |
| .44 x .69 | 11.1 x 17.5 | 4431 | 4431B | 4431F | CHQTM-5 L-27 | 1.09 | 27.7 | 0.61 | 15.5 | 0.22 | 5.6 |
| .44 x 1.00 | 11.1 x 25.4 | 4436 | 4436B | 4436F | CHQTM-5 L-35 | 1.40 | 35.6 | 0.61 | 15.5 | 0.22 | 5.6 |
Why Choose Heyco® CHQTM-5 Wire Clips?
Whether you’re working on automation systems, robotics, or general industrial applications, the Heyco® CHQTM-5 wire clips deliver a low-cost, high-performance solution for cable management. Their quarter-turn installation makes them quick to apply, their secure latch gate keeps wires in place, and their durable nylon material options ensure long-lasting reliability in any environment.
Download Heyco® CHQTM-5 Wire Clips technical sheet.
Looking to tidy up your wires the smart way?
Get in touch with Cords Canada to learn more about the Heyco® CHQTM-5 wire clips and find the right fit for your setup.
