At Cords Canada, we’re proud to bring innovation that simplifies your installations and strengthens your protection systems. The Heyco-Tite Tear-Away Liquid Tight Cordgrips are a perfect example — combining practicality, durability, and precision-engineered design for superior enclosure protection.
A Dual-Purpose Design That Works Smarter
These cordgrips are more than just cable glands — they’re dual-function protection systems. Initially used as plugs, they seal off your enclosures from dust, debris, moisture, and other contaminants during manufacturing or field sites.

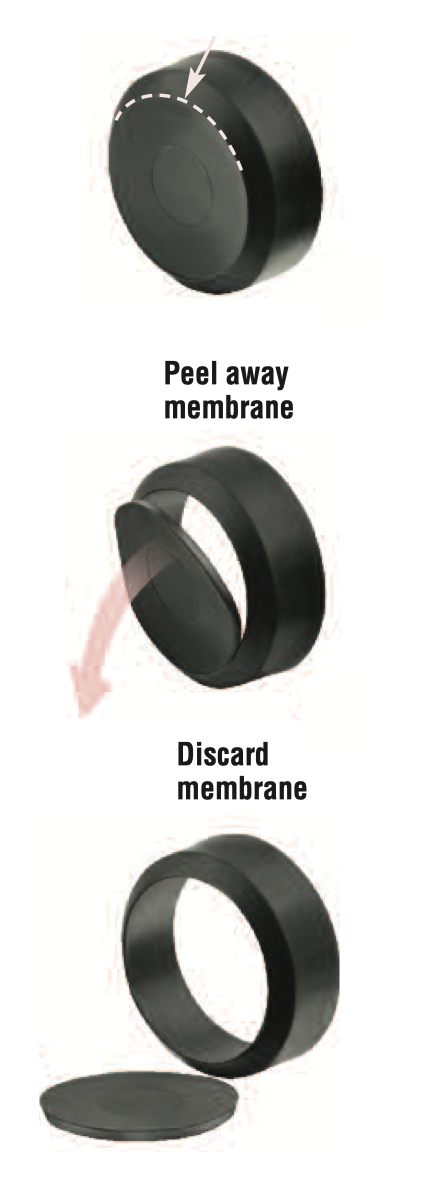

When it’s time for cable installation, simply puncture the gland edge with a flat-head screwdriver and tear away the ID. In seconds, your plug becomes a fully functional liquid-tight cordgrip. No replacement, no downtime — just seamless adaptability.
Built to Endure the Elements
Crafted from Nylon 6/6 with a TPE sealing gland, these cordgrips are engineered for the harshest environments. They resist:
- Salt water and weak acids.
- Gasoline, alcohol, oil, and grease.
- Common industrial solvents.
Whether used indoors or outdoors, they offer reliable liquid-tight performance as UL-Recognized cordgrips—and when used as plugs, they provide full IP68 protection to keep cables dry and enclosures clean.
Unmatched Sealing Performance

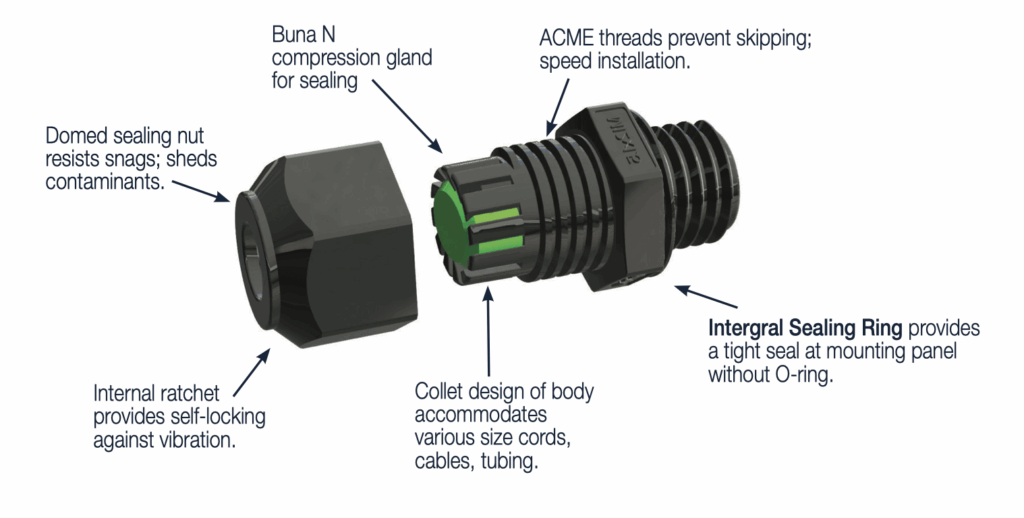

Each Tear-Away Cordgrip features an Integral Sealing Ring, providing a tight and reliable seal at the mounting hole. Combined with NEMA 4, 4X, 6, and 6P approvals, they guarantee top-tier protection for electrical and mechanical enclosures — even in challenging conditions.
Note: UL certifications apply when used as a cordgrip, not as a plug.
Why Choose Heyco-Tite Tear-Away Cordgrips?
- Dual functionality – Use as a plug or cordgrip
- Fast installation – Tear-away ID for easy cable entry
- Superior sealing – Integral sealing ring for leak-free fit
- Rugged build – Durable nylon body with TPE gland
- Certified protection – Meets IP68 and NEMA standards
Available Options
Offered in NPT, PG, and Metric hub configurations, these cordgrips come in standard black and gray colors, with custom colors available upon request.
Whether your setup involves electrical panels, control boxes, or industrial equipment, the Heyco-Tite Tear-Away series ensures clean, efficient, and secure connections — from production to installation.
Material Quick Specs
- Material: Nylon 6/6 with TPE Sealing Gland
- Flammability Rating: 94V-2 Standard
- Temperature Range:
- Static: -40°F (-40°C) to 239°F (115°C)
-
Dynamic: -4°F (-20°C) to 212°F (100°C)
- IP Rating: IP68 (70 PSI, 5 BAR) | IPx8 @ 2.6 PSI for 24 hrs | IPx5 as a plug
Download the spec sheet to explore available sizes and configurations.
Have questions or need guidance? Get in touch with Cords Canada to learn more about Heyco-Tite Tear-Away Liquid Tight Cordgrips and find the right fit for your application.
