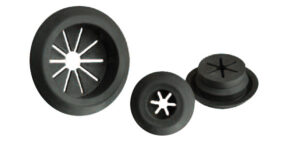

Heyco® Universal Thermoplastic Rubber Grommets
In many electrical and mechanical applications, protecting cables, wires, and tubing where they pass through panels is critical. Sharp edges, vibration, and constant movement can quickly damage insulation and lead to costly failures. This is where Heyco® Universal Thermoplastic Rubber Grommets offer a reliable and practical solution.
Designed for flexibility and ease of installation, these grommets help protect and support cables while simplifying the installation process. Whether used in electrical enclosures, control panels, machinery, or equipment housings, they provide dependable cable management and long term protection.
A Flexible Design That Adapts to Your Application
Unlike traditional grommets that are designed for a specific cable diameter, Heyco Universal Thermoplastic Rubber Grommets use flexible internal shutters that adjust to the shape and size of the cable or bundle passing through the panel.
This design allows the grommet to support round cables, irregular shapes, or bundled wires without requiring multiple grommet sizes. Depending on the selected model, cables and bundles up to 2.4 inches (61.0 mm) in diameter can be accommodated.
The result is a versatile solution that helps simplify design and installation.
Features and Benefits
- Flexible shutters adjust to accommodate and support almost any cable shape or bundle
- Supports cable or bundle diameters up to 2.4” (61.0 mm) depending on the selected grommet size
- Easily installed by hand into the panel opening
- Helps absorb vibration and reduce stress on cables
- Cushions cables from sharp panel edges
- Provides insulation for cables, tubing, hoses, or shafts passing through panels
- Made from UL 94 V-0 flammability rated material for improved safety
- Helps create a clean and professional cable entry point

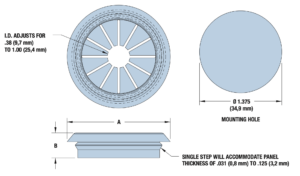

Specifications
Mounting hole diameter range: .500” (12,7 mm) to 3.000˝ (76,2 mm)
| MOUNTING HOLE DIAMETER | PART NO. Black | DESCRIPTION | Max Cable Diameter | PART DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A Head Diameter | B Overall Height | ||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||
| For Panel Thickness from .063″ (1,6 mm) to . 094″ (2,4 mm) | |||||||||||
| .500 | 12,7 | 13882 | UTRG 500 | .28 | 7,1 | .85 | 21,6 | .42 | 10,7 | ||
| .625 | 15,9 | 13884 | UTRG 625 | .37 | 9,4 | .97 | 24,6 | ||||
| For Panel Thickness from .063″ (1,6 mm) to. 125″ (3,2 mm) | |||||||||||
| .750 | 19,1 | 13890 | UTRG 750 | .45 | 11,4 | 1.10 | 27,9 | .42 | 10,7 | ||
| .875 | 22,2 | 13892 | UTRG 875 | .50 | 12,7 | 1.22 | 31,0 | ||||
| 1.000 | 25,4 | 13894 | UTRG 1000 | .65 | 16,5 | 1.35 | 34,3 | ||||
| 1.093 | 27,8 | 13896 | UTRG 1093 | .75 | 19,1 | 1.44 | 36,6 | ||||
| 1.250 | 31,8 | 13898 | UTRG 1250 | .96 | 24,4 | 1.60 | 40,6 | ||||
| 1.375 | 34,9 | 13900 | UTRG 1375 | 1.00 | 25,4 | 1.73 | 43,9 | ||||
| 1.500 | 38,1 | 13902 | UTRG 1500 | 1.10 | 27,9 | 1.85 | 47,0 | ||||
| 1.750 | 44,5 | 13903 | UTRG 1750 | 1.25 | 31,8 | 2.09 | 53,1 | ||||
| 2.000 | 50,8 | 13904 | UTRG 2000 | 1.50 | 38,1 | 2.36 | 59,9 | ||||
| 2.500 | 63,5 | 13906 | UTRG 2500 | 2.00 | 50,8 | 2.85 | 72,4 | ||||
| 3.000 | 76,2 | 13908 | UTRG 3000 | 2.40 | 61,0 | 3.38 | 85,9 | ||||
Wide Range of Mounting Options
These grommets are available for mounting hole diameters ranging from 0.500 inches to 3.000 inches (12.7 mm to 76.2 mm). The universal shutter design allows them to adapt to different cable configurations while maintaining secure support.
They also accommodate panel thicknesses from 0.063 inches to 0.125 inches, making them suitable for many standard enclosure and equipment designs.
Material Specifications
- Material: Thermoplastic Elastomer (TPE)
- Hardness: 80 Shore A
- Flammability Rating: UL 94 V-0
- Temperature Range: -81°F to 275°F (-60°C to 135°C)
- UL Pending
This material provides reliable performance in a variety of industrial environments where vibration, temperature changes, and mechanical stress are common.
Typical Applications
Heyco Universal Thermoplastic Rubber Grommets are commonly used in:
- Electrical enclosures and control panels
- Industrial machinery and automation equipment
- Telecommunications equipment
- HVAC systems
- Power distribution equipment
- Automotive and transportation systems
Reliable Cable Protection from Cords Canada
At Cords Canada, we supply high quality Heyco cable management components designed for dependable performance in industrial environments. Our team can help you select the right grommet size for your application. Contact Cords Canada for more information, specifications, or to place an order.
Download the spec sheet to explore available sizes and configurations.
